C2 Corvette Ignition Shielding and NOS Parts (Springfield)
QR Code Link to This Post

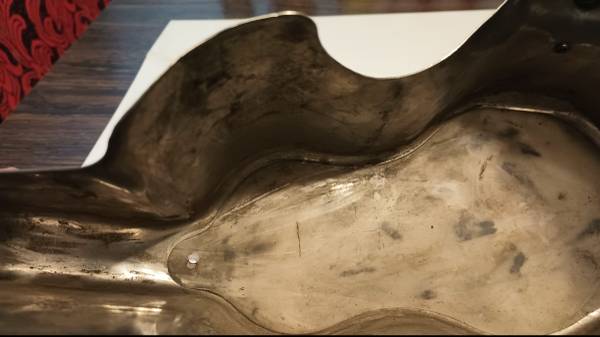

Original GM Distributor Ignition Shield Top for 1965 Corvettes with small block engines. Used. Very good condition. No dings or damage. Does need a Plastic Rivet for the insulator in the top and the slide in Tab on the rear. Available from ZIP Corvette Parts or other suppliers. This Top Shield will work on other C2 year cars with small block engines.
Original GM Lower Side Bracket for wires. Left side. 1963 - 1967. Have 2. Used. Needs re painting.

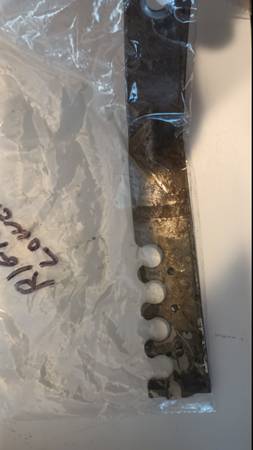

Original GM Lower Side Bracket for wires. Right Side. Have 1 with four holes on front side 1962 - 1964 and 1 with 2 holes on each side 1965 - 1974. Used. First one needs to be dipped in black vinyl to witness mark then re painting.
NOS Wing Bolt. GM PN 3728415 (Gr. 9.663). Bag of 14. Also have 7 used. 4 required for application.
Original GM Grommet, 4 hole inline. GM PN 3719963 (Gr. 2.251). For spark plug wires. Used but pliable. Have 10. 4 required for application. I have used ones on my 1963 Corvette.

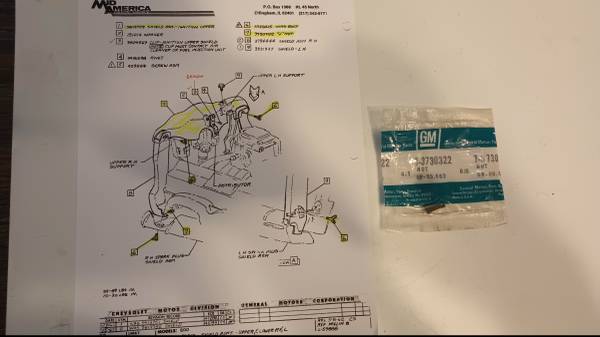

NOS J Nut for right side vertical shielding at bottom. GM PN 3730322 (Gr. 9.663). 1956 -1977. Have 8 bags of 1 and one bag of 14. 1 required for application.
Price $475.00 for the above for parts required for one application.
Notes:
Will need Vertical Side Shields and upright Brackets on the intake manifold for a complete set.
I have seen used original GM Top Shield only asking prices online (1/22/25) from $399.00 up to $999.00!
Will NOT sell parts individually.
___________________________
FYI: The following are Lower Ignition Shielding parts at spark plug area.
NOS Wire Clip at center of Vee. GM PN 3744409 (Gr. 2.251). 1956 - 1982. Have bag of 2. Bolts to oil pan. 2 required for application.
NOS Two Wire Support. GM PN 3744408 (Gr. 2.251). 1956 - 1982. Have bag of 2. 2 required for application.
NOS Support Brackets for right side shield for spark plugs. 3 styles. GM PNs 3819757. Have 2, GM PN 3819759. Have 5 and GM PN 3819759. Have 2. 2 of 3819757 required and 1 of each of others.
Price $125.00 for above parts required for one application. Will require many more parts to complete an application.
______________________________________________________________________________________________
Notes:
All the above NOS parts are DISCONTINUED from GM.
Will sell extra parts not required for above applications individually. Inquire for prices.
All parts stored in bags and a larger box. Top shield covered with a plastic bag to keep away from other parts. Stored inside.
